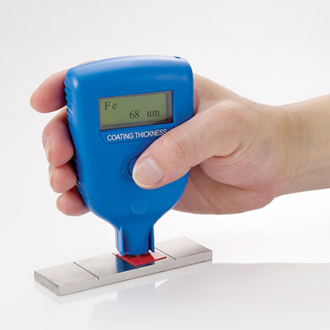

NDT 510 Fe coating Thickness Gauge
IDEAL TOOL FOR…
Powder Coaters
Paint Suppliers
Paint Applicators
Coating Quality Control Inspectors
Painting Contractors
Automotive Dealers
Automotive Refinishers
Automotive Resellers
Body Shops
Car Dealerships & Inspectors and more…
Car Dealerships & Inspectors and more…
ADDITIONAL FEATURES:
§ Measures coatings on ANY METAL including steel, iron. Automatically recognizes the material and takes an accurate measurement.
§ Automatic ON/OFF switching.
§ Automatic Substrate Recognition.
§ Factory calibrated and ready for use. Measures precisely right out of the box.
Simple operation: No user calibration required.
Simple operation: No user calibration required.
§ ZERO set feature for non-standard surfaces.
§ RESET to default restore factory settings feature when no zero reference is available.
§ Strong, wear and weather resistant probe.
§ Large 2 LINE HIGH CONTRAST FLIP LCD Display for easy viewing in any position.
§ Durable high quality construction.
§ Fast and accurate measurements with sound tone confirmation.
§ Mils / Microns selectable. Displays readings in Metric (μm) or Imperial units (mil).
§ Pocket-sized and lightweight for comfortable one hand operation.
§ Supplied with a set of plastic test shims.
§ Works with a single AAA battery.
GAGE COMES COMPLETE WITH:
§ Built-in Fe probes.
§ Set of plastic test shims and 1 reference calibration plates (Steel).
§ Hard shell storage case.
§ Custom horizontal leather holster case with a secure belt clip and dual magnetic locks.
§ AAA industrial alkaline battery.
§ Instruction manual.
SPECIFICATION::
Fe-Probe: Measurement on Steel or iron
Range: 0-50 mils ( 0.0 to 1250µm
Resolution 0.1mils ( 2µm) high resolution
Accuracy ± [(1%~3%)H+1um]
Temperature range: Storage: -10°C to 60°C (14°F to 140° F
Operation: 0° C to 60° C (32° F to 140° F)
Power Supply Battery: 1 x 1.5V AAA Alkaline
Dimensions 4.2″ x 1.7″ x 0.9″ in. (110 mm x 45 mm x 23 mm)
Weight 2.7 oz. (70 g) Including batteries
