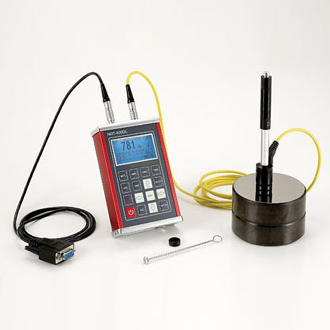

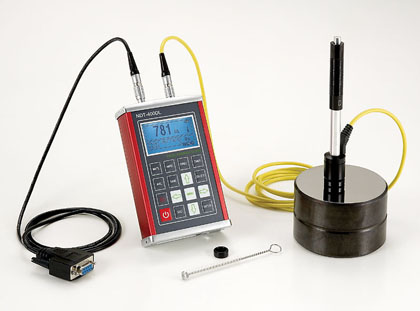

NDT-400DL Impact Hardness Tester
CE approved
NDT-400DL is an advanced hand-held portable hardness tester, featuring: compact size,
high accuracy, wide measuring range and simplicity of operation.
The NDT-400DL is suitable for testing hardness of the most common metals used in industry,
Typical Applications
Installed machines and permanent part of assembled systems
Molding surfaces of forming dies
Heavy work-pieces
Failure analysis of pressure vessels, turbo-generator sets, etc.
Production line inspection of automotive and armaments.
Recording of test data as original records
Material sorting and identification
Hardness scale including: Brinell, Rockwell, Vicker and Shore hardness
Technical Data
Display: 128X64 pixel LCD
Display error: plusmn;0.5 % ( Ref. to L=800)
Measuring range: 200 to 960 HL
Materials: steel amp; cast steel, alloy steel, stainless steel, grey cast iron
spheroid iron, cast aluminum, brass, bronze, wrought copper alloy.
Relative repetitive display error: plusmn;0.8 %
Memory: 1250
Battery: Li-Ion battery pack with working time in excess of 48 hours
Continuous with backlight turned off.
Auto-off: 2 minutes after last reading
Date output: USB connector
108 x 62 x 25 mm
Weight: 180g (0.4 pounds)
Standard Accessories:
Basic Unit with D type Impact device
Calibration test block
Clean Brush
Maker certificate and operating manual

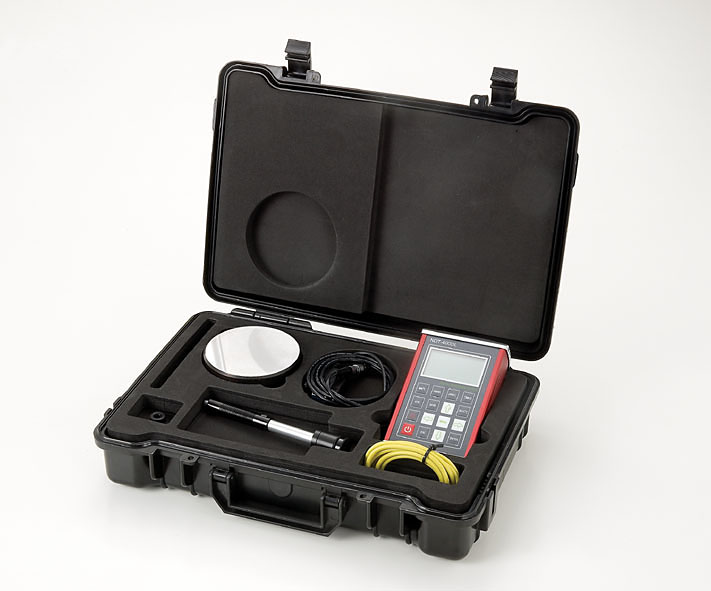

Rugged Carrying Case
Optional Accessories
Impact devices: DC, D+15, DL, G.C.
Special support ring
Software package
| Item | Description |
| 1 | Impact Device D |
| 2 | Impact Device DC |
| 3 | Impact Device D+15 |
| 4 | Impact Device DL |
| 5 | Impact Device C |
| 6 | Impact Device G |
| 7 | Impact body D |
| 8 | Impact body G |
| 9 | Support rings(12pcs) |
