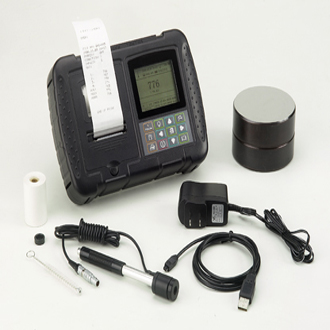

DHT-400LP Impact Hardness Gauge
DHT-400LP Leeb hardness tester, based on the principle of Leeb theory, can be used for
hardness testing of various metals. With the feature of compact size, it is suitable for working
on various circumstances. The Leeb hardness values can be easily converted to HRC, HRB,
HV, HS and so on normal hardness scales.
In order to operate the instrument correctly and properly, users are required to read this
instruction manual completely before using it
Display: 320×240 matrix LCD display,LED back light
Measuring rage: HL 180-960 HRC 17.0-68; HRB 13.3-100.0
HS 5.0-99.9 HB 30-HV 80-999
Display accuracy: error plusmn;0.5%(HL=800),repeatability plusmn;0.8%
Memory: 200 customized files are available and 999 data can be stored in each file.
Power: 4 AA rechargeable battery,continuous work time is 48 hours
( without backlight)
Auto turning off: Turning off mode is settable
Working circumstance: -20Cdeg;+40?
Storing temperature: -30?mdash;+60?
Dimension: 215 x 145 x 46mm
Weight: 600 g ( with battery )
|

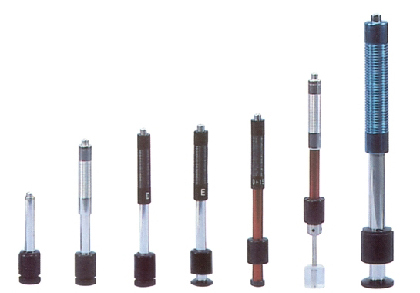

Item |
Description |
|
1 |
Impact Device D |
|
2 |
Impact Device DC |
|
3 |
Impact Device D+15 |
|
4 |
Impact Device DL |
|
5 |
Impact Device C |
|
6 |
Impact Device G |
|
7 |
Impact body D |
|
8 |
Impact body G |
|
9 |
Support rings(12pcs) |
