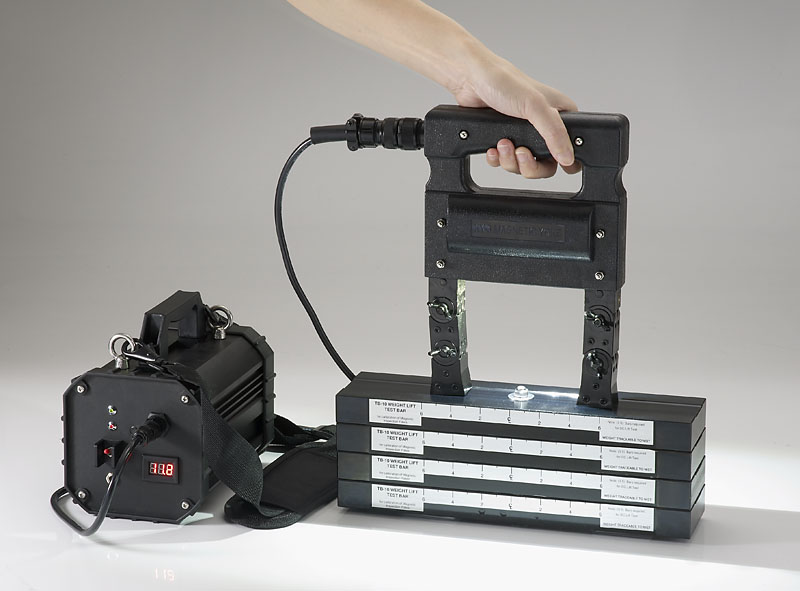

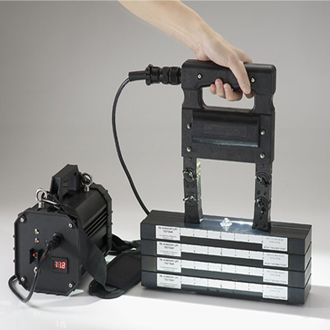

THE NEW PORTABLE YOKE MODEL KY-3-DC WITH LED LIGHT
KY-3-DC CONTOUR PROBE
The KY-3-DC Contour Probe is a portable, self-contained instrument designed to produce a magnetic field on or within Ferro-magnetic materials.
The selective DC functions are built into a single reliable instrument. The DC mode produces an intense DC field for detection of surface defects and demagnetizing after inspection.
Controls and solid-state electronics are contained within the high impact molded housing. Articulating legs allow the DC field to be applied to the precise area of inspection on nearly any part of the surface shape… in the lab, factory or field site.
FEATURES
– Versatility and powerful performance in a weight (40 lbs.) instrument
– Apply continuous or residual magnetic fields and demagnetize to
– LED white light installed
– Use with dry powder, wet fluorescent or visible
– High impact molded housing
– One year repair/replacement guarantee
SPECIFICATION
|
Physical
|
7.48″ (190 mm) × 9.76″ (248mm) × 2.2″ (57mm)
|
|
Line Voltage Single Phase
|
2 minutes on – 2 minutes off
|
|
Line Current
|
1.8A
|
|
Duty Cycle
|
2 minutes on – 2 minutes off
|
|
Weight
|
2.9Kgw
|
|
Construction
|
Glass-filled nylon housing 5M cable
|
|
Span
|
8 in. (200 mm) across poles
|
|
Field
|
DC
|
|
LED Light
|
3W
|
Battery Weight: 2.67KGW
Li-Ion battery Pack: 12 V, 15AH
Battery Appearance of size:
125mm X 125mm X 187mm
Charger: 3.2 A 110/220 V
LED Battery Voltage Display

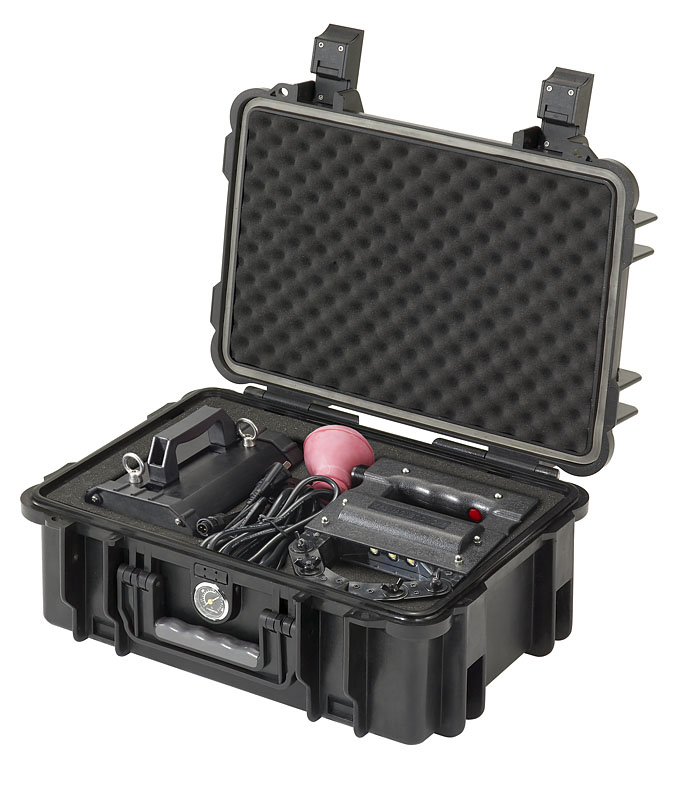

KY-3 –DC Kit
– KY-3 Main Unit

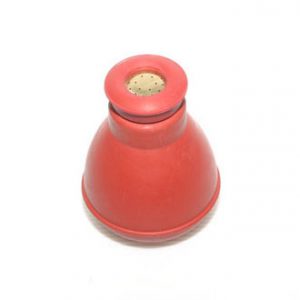

– Dry Powder Bulb
– Hard Carrying Case
Optional Accessores
– Magnetic Field Indicator
– 20-0-20 Gauss Meter
– 4.5 kgs Lift Bar
– Black Light
– 20-0-20 Gauss Meter
– 4.5 kgs Lift Bar
– Black Light
