TECHNICAL DATA
DISPLAY 128X64 PIXEL LCD WITH BACK LIGHT
MEASURMENT RANGE STANDARD 1.0 mm TO 250 mm IN STEEL DEPENDING OF THE PROBE
THROUGH COATING 2.5 mm~20 mm ( WITH STANDARD PROBES )
TOLERANCE +/-0.01 mm IN STEEL
DISPLAY RESOLUTION 0.01 mm (LESS THAN 100.0 mm) 0.1 mm ( OVER 100 mm )
BULIT-IN STANDARD BLOCKS nbsp;4.00 mm
VELOCITY 1000-9999 m/s
POWER 2 EA. 1.2 V AAA BATTERY
OUTSIDE DIMENSION 149X73X32 mm
WEIGHT 350 g
FEATURES:
– AUTOMATIC SELF CALIBRATION
– COUPLANT INDICATOR
– AUTOMATIC POWER OFF DEVICE
– HIGH-LOW LIMIT ALARM
– LCD BRIGHTNESS ADJUST
– THROUGH COATING CAPABILTY
– LOW BATTERY INDICTORnbsp;
– TWO POINT CALIBRATION DEVICE
– 500 DATA STORGE WITH 5 DIFFERENT FILE

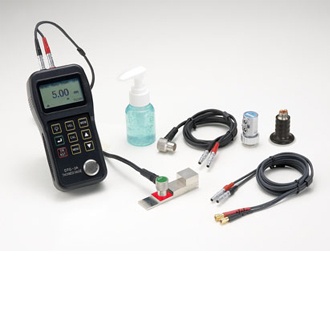

STANDARD PACKAGE:
MAIN UNIT WITH THOUGH COATING MODE
4 STEP STEEL TEST BLOCK ( 2.5, 5, 10,20 mm)
WATER-PROOF HARD CARRING CASE
4 oz. COUPLANT BOTTLE
STANDARD 8 mm DIA. 5 MHz PROBE WITH CABLE
(STANDARD RANGE: 1.0 mm-250 mm, THROUGH COATING MEASUREMENT FROM 2.5 mm~20. mm)
Protect silicon cover
OPTIONAL ACCESSORIES:
| ITEM | P/N | DESCRIPTION |
| 1 | KY-7S | 7-STEP STEEL TEST BLCOK. 1, 1.5, 2,4,6,8,10 mm |
| 2 | TS200 | 5 MHz, 8 mm probe with cable1.5m Range:1.00-250.0 mm with |
| 3 | TS320 | 5MHz, 10 mm, 1.0-250 mm |
| 4 | TS400 | 10 MHz, 4 mm, 0.8-18 mm |
| 5 | TS231-C | CABLE FOR TS320, Dual LEMO 00/Lemo 00 1.5 m |
| 6 | TS400-C | CABLE FOR TS400, Dual LEMO 00/MICRODOT 1.5 m |
