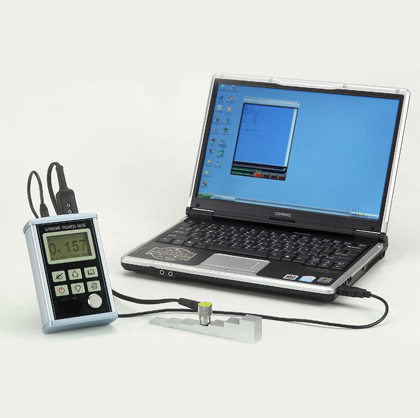

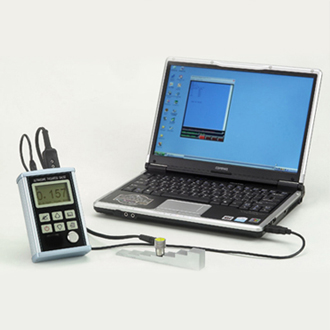

| The NDT-200DL is economically priced, full featured digital ultrasonic general
purpose and corrosion thickness gauge. NDT-200D Large menu driven,
multi-function design to offer everything from the basic measurement to
extended memory and USB output capability.
This dynamic series of gauge is designed to measurement the Thickness of
metallic and non-metallic material. Such as Steel, Aluminum, Plastic, ceramics,
glass and any other good Ultrasonic wave conductor.
The NDT-200DL is a high precision simple data logger gauge. It will accuracy
measure and display after a simple calibration to a known thickness or sound
velocity.
SPECIFICATION
Display Type;digital LCD with backlight
Unit to Display;metric and inch
Minimum Display Unit;0.01 mm
Display Accuracy:0.001/ 0.01 mm
Measuring Range:0.026-9.843 inch, 0.6-300 mm in steel
Sound Velocity Range;1000-9999 m/s in steel
Frequency;2.25 MHz to 10 MHz
Calibration;probes Auto zero calibration
Power Supply;Li-Ion rechargeable battery
Battery Life; approx. 48 hours per charge
Data Storage memory;4000 points
Data Output;USB connector
Charger;nbsp;110/220 VAC to DC,USB connector charger
Charger Time12 hours fully charge
Housing;Rugged aluminum housing
Probe Connector;Dual Lemo 00 equivalent connector
Outside Dimensionnbsp;61x108x28mm ( LxWxH)
Weight;approximately 250 g
Operating Temperaturenbsp;-23~122 deg F. (-5~+50 deg C)
STANDARD PACKAGE
NDT-200DLnbsp; Instrument
TS 200 5 MHz with integral 6ft
cable (measure from (0.032~12 inch) 0.8-300 mm in steel )
110/220 VAC to DCUSB charger
USB interface cable
Software Packagenbsp; PC – Windows compatible
Rugged Impact-resistant water-proof carrying case
4 Step test block(2.5 5 10 20mm)
OPTIONAL ACCESSORIES

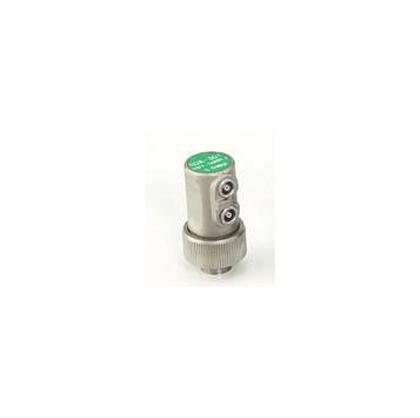

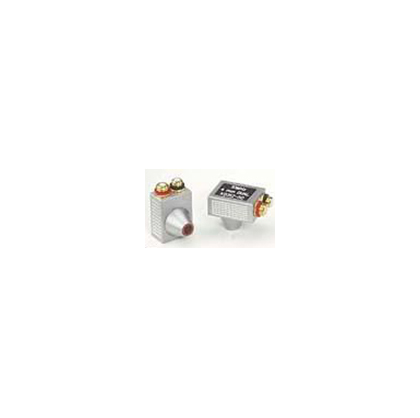

TS 300 10 MHz, 4 mm dual crystal probe
(measure from (024 – .80 inch) 0.6-20 mm )
KY-0090 Cable for TS300 probe (DM-Microdot L/S)

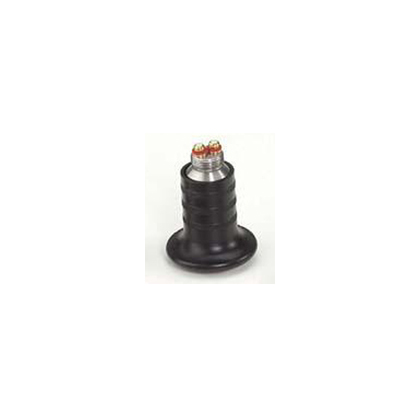

TG790H 5MHz, 500 C High Temperature dual crystal probe
(measure from 0.120 ndash; 3 inch,3.0 ndash; 75 mm )
KY-790 S.S. shielding Cable for TG790H high temperature probe
TS 400 2.25 MHz, 12 mm dual crystal probe
(measure from: 0.80 ndash; 4 inch, 2.0 ndash; 100 mm )
7 steps thickness block, Steel (Other material available )
( 1, 1.5,2,4,6,8,10 mm)
|
