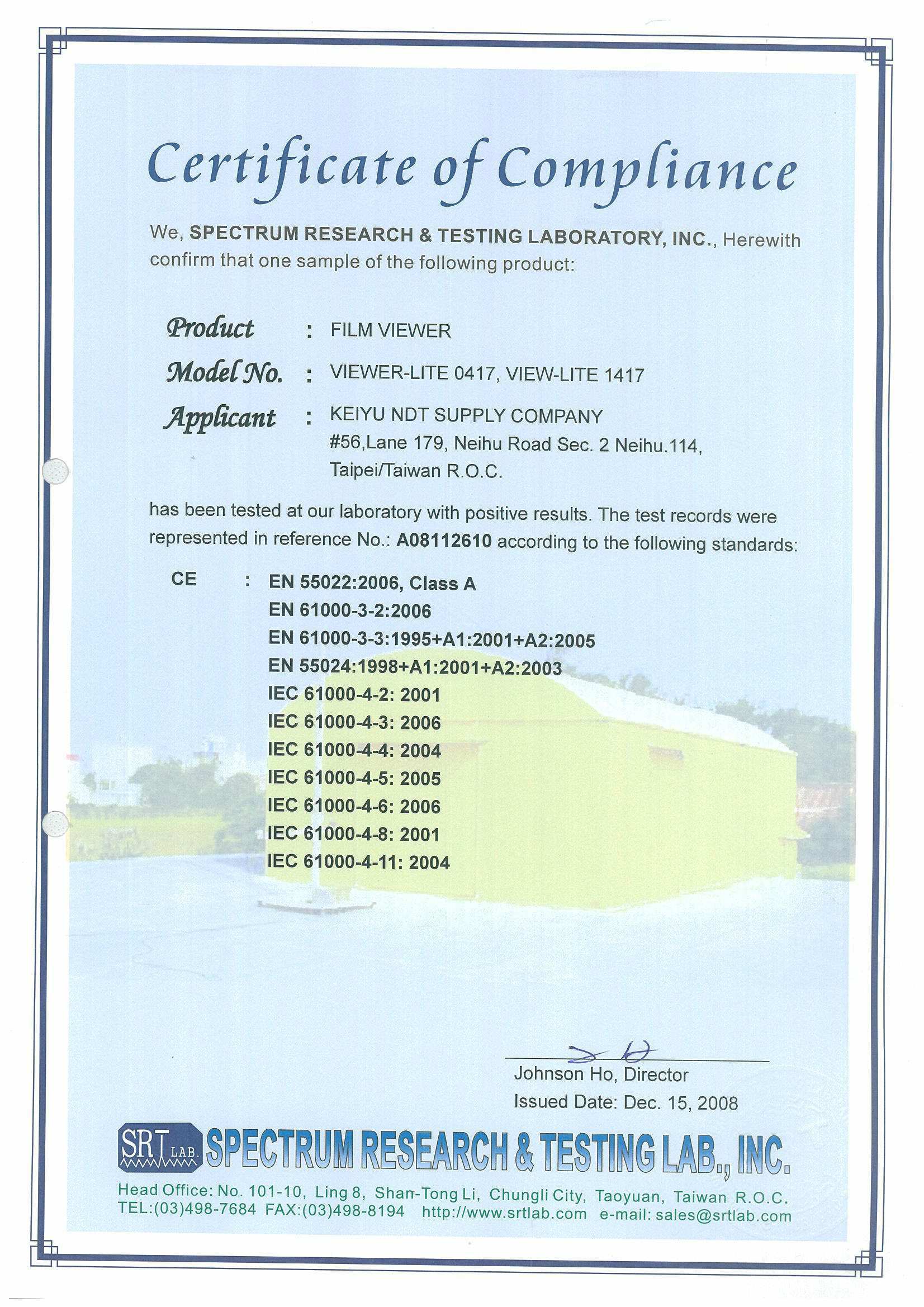

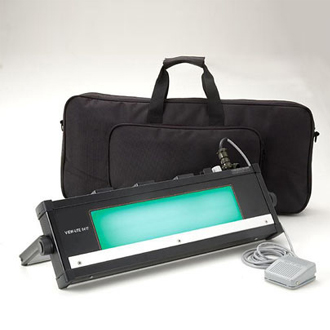

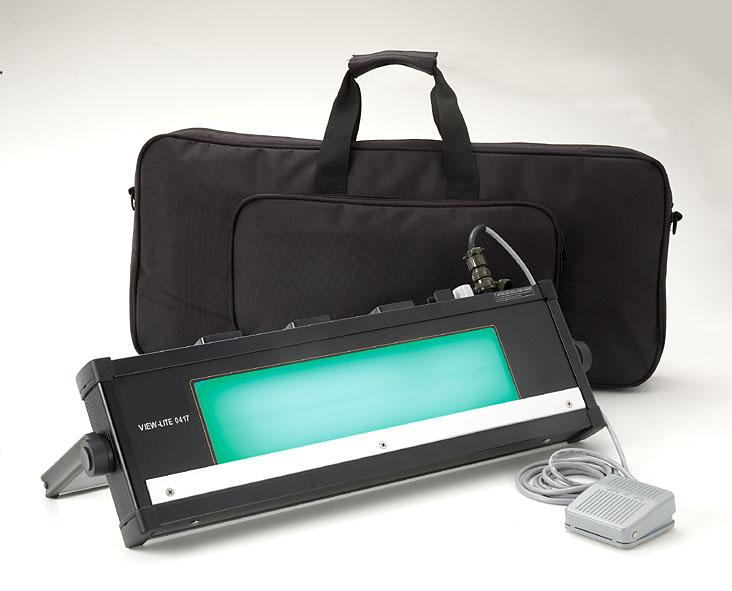

VIEW-LITE 0417 ( CE Approved )
MAX VIEW DENSITY; 3.8.0D
LIGHT INTENSITY: 40,000 cd/m2
POWER: 110 OR 220 VAC, 50/60 Hz
LAMP:2EA. GREEN COLOR PL-36W LAMP
VIEWER WINDOW: 3.46×13.7in ( 86x350mm )
HOUSING: RUGGED ALUMINUM FRAME
LIGHT INTENSITY CONTROL: FROM 20%~100% CONTINOUS CONTROL
COOLING FAN: 3 EA. 4 inch SQUARE 12V HIGH CAPACITY COOLING FAN
HEAT ON THE VIEWER WINDOW: LESS THANnbsp;38C AFTER POWER ON AFTER 2HOURS
FOOT SWITCH ON/OFF CONTROL
OUTSIDE DIMENSION: 490X170x55mm ( LxWxH )
WEIGHT: 2.5Kg
Fom Wikopedia CANDELA Definition
The frequency chosen is in the visible spectrum near green, corresponding to a wavelength of aboutnbsp;anometers. The human eye is most sensitive to this frequency, when adapted for bright conditions. At other frequencies, more radiant intensity is required to achieve the same luminous intensity, according to the frequency response of the human eye. The luminous intensity for light of a particular wavelength lambda; is given by where Iv(lambda;) is the luminous intensity in candelas, I(lambda;) is the radiant intensity in W/sr and is the
standard luminosity function. If more than one wavelength is present (as is usually the case),one must sum or integrate over the spectrum of wavelengths present to get the total luminous intensity.
