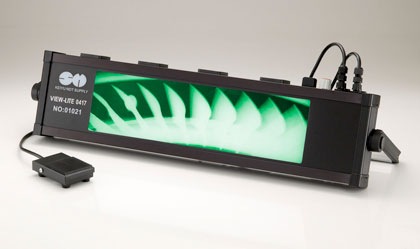

VIEWER-LITE 0417-55

Product Name : VIEW-LITE 0417-55 FILM VIEWER

MAX VIEW DENSITY; 3.8.0D

LIGHT INTENSITY:  40,000 cd/m2

POWER: 110 OR 220 VAC, 50/60 Hz

LAMP:2EA. GREEN COLOR PL-55W LAMP

VIEWER WINDOW: 435x113mm

HOUSING: RUGGED ALUMINUM FRAME

LIGHT INTENSITY CONTROL: FROM 20%~100% CONTINOUS CONTROL

COOLING FAN: 4 EA. 4 inch SQUARE 12V HIGH CAPACITY COOLING FAN

HEAT ON THE VIEWER WINDOW: LESS THANnbsp;38°C AFTER POWER ON AFTER 2HOURS

FOOT SWITCH ON/OFF CONTROL

OUTSIDE DIMENSION:715x170x55mm ( LxWxH )

WEIGHT:3.3Kg

Fom Wikopedia CANDELA Definition

The frequency chosen is in the visible spectrum near green, corresponding to a wavelength of aboutnbsp;anometers. The human eye is most sensitive to this frequency, when adapted for bright conditions. At other frequencies, more radiant intensity is required to achieve the same luminous intensity, according to the frequency response of the human eye. The luminous intensity for light of a particular wavelength lambda; is given by where Iv(lambda;) is the luminous intensity in andelas, I(lambda;) is the radiant intensity in W/sr and is the standard luminosity function. If more than one wavelength is present (as is usually the case), one must sum or integrate over the spectrum of wavelengths present to get the total luminous intensity.
