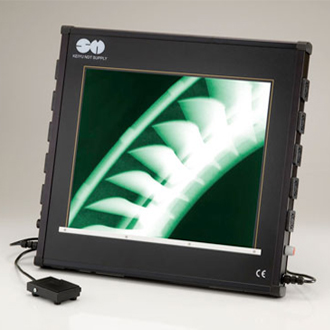

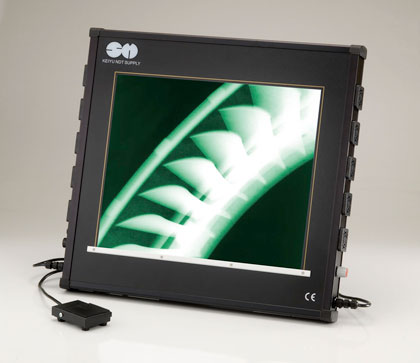

VIEW-LITE THE HIGH INTENSITY GREEN COLOR FLUROSCENT
X-RAY FILM VIEWER
COLD LAMP, LOW HEAT ON THE WINDOW SURFACE
RUGGED ALUMINUM FRAME WITH ANOIZED
12V HIGH CAPACITY COOLING FAN
CONTINOUS LIGHT INTENSITY CONTROL
OPTIONAL FOOT SWITCH ON/OFF CONTROL
EASY USE AND EASY MAINTENACE
.jpg)
TECHNICAL DESCRIPTION
VIEW-LITE 1417
MAX VIEW DENSITY: 4.0 D
LIGHT INTENSITY: 55,000cd/m2
POWER: 110 OR 220 VAC, 50/60 Hz
LAMP: 10 EA. GREEN COLOR PL-36W LAMP
VIEWER WINDOW:14x17in ( 356x432mm )
HOUSING: RUGGED ALUMINUM FRAME
LIGHT INTENSITY CONTROL: FROMnbsp;20%-100% CONTINOUS CONTROL
COOLING FAN: 6 EA. 4INCH SQUARE 12V HIGH CAPACITY COOLING FAN
HEAT ON THE VIEWER WINDOW: LESS THAN 38C AFTER POWER ON AFTER 2HOURS
FOOT SWITCH ON/OFF CONTROL
OUTSIDE DIMENSION: 572x542x85mm ( LxWxT )
WEIGHT: 7.5 Kg
Why Use Green Light Lamp
For Wikopedia CANDELA Definition
of about nanometers. The human eye is most sensitive to this frequency, when adapted
for bright conditions. At other frequencies, more radiant intensity is required to achieve the same
luminous intensity, according to the frequency response of the human eye. The luminous intensity for light of a particular wavelength lambda; is given by where Iv(lambda;) is the luminous intensity in candelas, I(lambda;) is the radiant intensity in W/sr and is the standard luminosity function. If more than one wavelength is present (as is usually the case), one must sum or integrate over the spectrum of wavelengths present to get the total luminous intensity.
