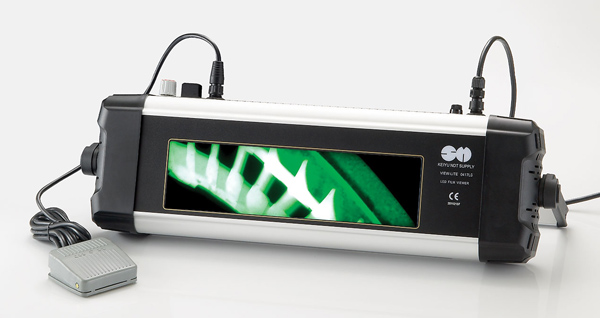

View-Lite 0417LG
High Intensity Green LED Light X-Ray Film Viewer
.jpg)
Description
View-Lite 0417LG LED high Intensity Industrial X-Ray Film Viewer is developed according to the ASME 2007 Boiler@Pressure vessel Code requirement. Min. film density > 4.0 D.
View-Lite 0417LG viewer use rugged aluminum frame and industrial plastic molded side cover with adjustable handle.
It&39;s complete portable design for field work application.

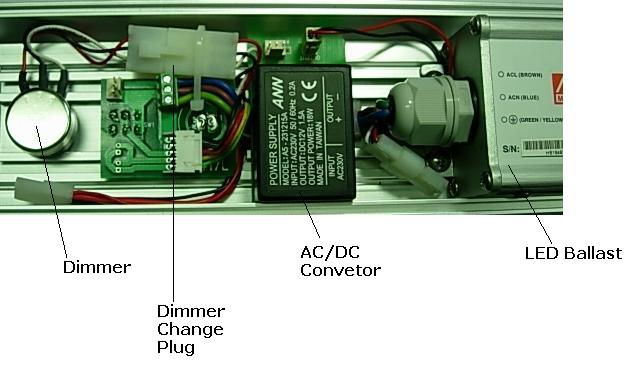

View-Lite 0417LG viewer use high power LED with adjustable dimmer light control and foot switch on/off control. High power circulating cooling fan cam cool down LED temperature.
All modules design with high quality parts, easy assemble and easy repair
SPECIFICATION
Max. light Intensity: 170000 lux ( 56,000 cd/m2 ) 565 um Green Light
View film density: 4.0 D
Viewer window light uniform: above 0.95 full view window
Adjustable dimmer control: from 25-100% continous
Handle: adjustable with different angle
Surface temperature: approx. 40 degree C after 30 min. full light operation
Viewer window size: 300x75mm
Power requirement: 110 VAC or 220 VAC
Dimension: 570x170x80mm ( LxWxT )
Total Weight: 3.7 Kgs

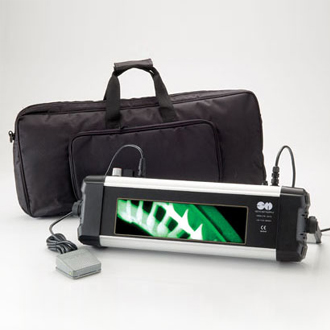

Standard Package
– 1 x main unit
– 1 x foot switch
– 1 x carrying bag
– 1 x operating manual
– 1 x warranty card
