ULTRASONIC FLAW KIT

Product Name : ULTRASONIC FLAW SPECIMENS KIT


Ultrasonic Flaw Specimens Kit.pdf

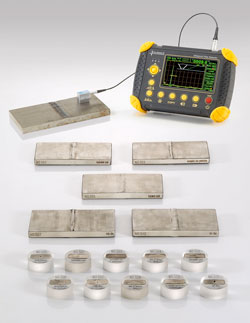

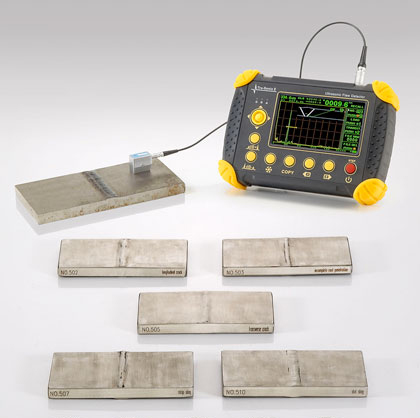

Ultrasonic Flaw Specimens Kit

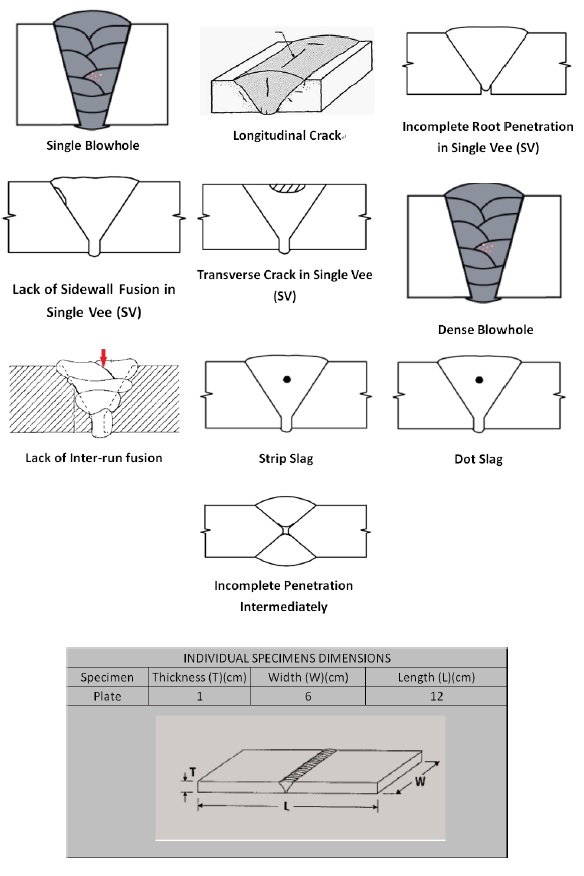

Introduction to Weld Flaws
A set of miniature welds, macro sections and photo-radiographs to demonstrate the principles of flaw detection, flaw interpretation and basic sizing.
•    Introduction to weld flaws
•    Demonstrate principles of flaw detection
•    Demonstrate typical NDT flaw responses
•    Demonstrate principles of flaw interpretation
•    Basic flaw sizing

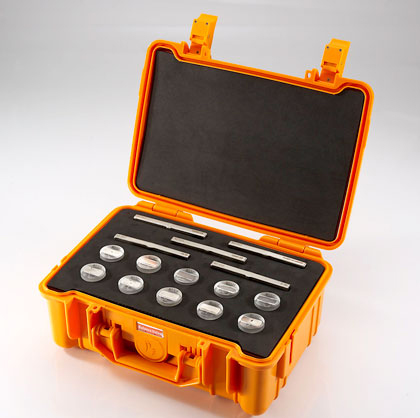

Kit contents

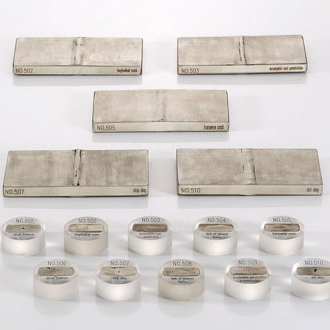

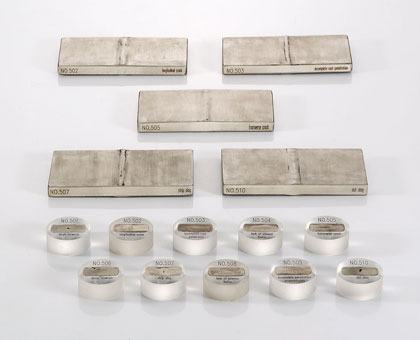

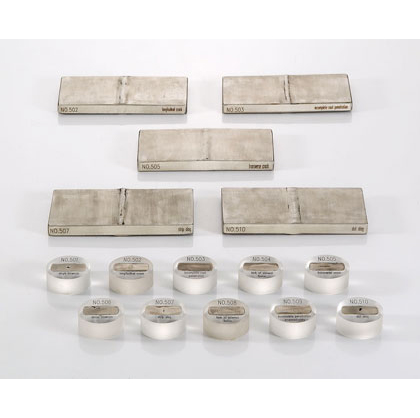

•    10 miniature flawed specimens
•    Flaw location details
•    Testing and acceptance criteria
•    Photo-radiographs (where applicable) for each specimen
•    5 Plates with two side difference crack welding defect
•    Certificate of conformance

Materials
• Carbon Steel
