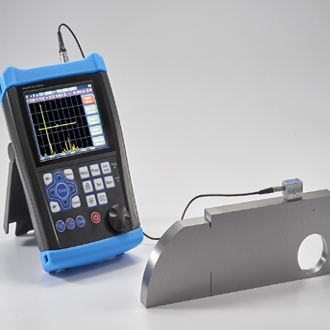

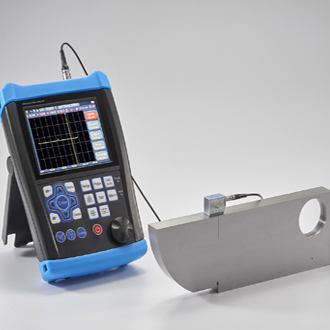

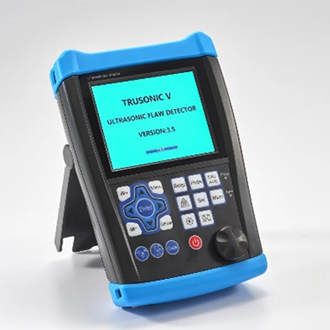

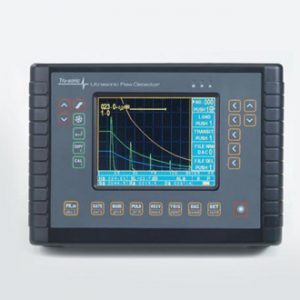

TruSonic V Digital Ultrasonic UT Flaw Detector
The Tru-SonicV is an advanced digital ultrasonic flaw detector featuring a multi-colorLCD and a host of new features to meet challenging inspection requirements. It combines powerful flaw detection and measurement capabilities, extensive data storage, and the ability to transfer detailed inspection data to the PC via its high-speed USB port and Bluetooth.The instrument incorporates many advanced signal processing features including a 35MHz RF bandwidth to permit testing of thin materials, narrowband filters to improve signal to noise in high gain applications.The instrument can be widely used in locating and sizing hidden cracks, voids, disbands, and similar discontinuities in welds, forgings, billets, axles, shafts, tanks and pressure vessels, turbines, and structural components.
 |
 |
 |
 |
The instrument extends the performance and range of applications that are capable of being satisfied by a portable instrument. The quality, portability, durability, and dependability that you have come to expect from the popular KEIYU Series of instruments remain
Display
Hi-resolution multi-color LCD with continuously brightness control provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness.
The hi-resolution multi-color TFT LCD display with fast 70 Hz update gives an “analog look” to the waveform providing detailed information that is critical in many applications including nuclear power plant inspections.
Range
Up to 15000 mm in steel. Range selectable in fixed steps or continuously variable. Suitable for use on large work specimen and in high-resolution measurements.
Pulser
Pulse Energy selectable among 70V、120V、250V、300V、350V、400V、450V、500V.
Pulse Width tunable from 30ns~510ns to match the probes with different frequency.
Pulse Repetition Frequency adjustable from 10 Hz to 10KHz in 1 Hz increments.
Dampingselectableamong50Ω,100Ω200Ωand400Ωforoptimumprobe performance
Test Modes: Pulse echo, dual element and thru-transmission
Probe Types: Single Straight, Single Angle, Dual Straight, Dual Angle, Through, Creeping,Surface
Receiver
Sampling: 12 digital AD Converter at the sampling peed 400 MHz
Rectification: Positive Halfwave, Negative Half, Full-Wave and RF
Analog Bandwidth: 0.4MHz to 25MHz capability with selectable frequency ranges (automatically set by the instrument) to match probe for optimum performance.
Gain:0 dB to 110 dB adjustable in selectable steps 0.1 dB, 1dB, 2 dB, 6 dB, and locked.
Gates
Two fully independent gates offer a range of measurement options for signal amplitude or distance using peaktriggering.
The echo-to-echo mode allows accurate gate positioning for signals which are extremely close together.
Gate Start: Variable over entire displayed range
Gate Width: Variable from Gate Start to end of displayed range
Gate Height: Variable from 0 to 99% Full Screen Heigh
Alarms: Threshold positive/negative
Memory
Memory of 500 set files to store calibration set-up.
Memory of 1000 test report files to store. All the files can be stored, recalled and cleared through USB-Disk, data could be storage unlimited Depending USB disk Capacity
Video Recorder
Screen scenes can be captured as movie files. five pieces of video can be saved to the inside memory, unlimited videos can be saved to the U-Disk. They can be re-played using the instrument or the PC software delivered with theinstrument.
Video Recorder is useful in many situations, itis very convenient for those who want to analyze the probing activities later.
Functions
Semiautomatic two-point calibration: Automated calibration of transducer zero offset, angle, front end and/or materialvelocity
FlawLocating：LivedisplaySound-path,Projection(surfacedistance),Depth,Amplitude,
Flaw sizing: Automatic flaw sizing using AVG/AVG or DAC, speeds reporting of defect acceptance orrejection.
Digital Readout and Trig. Function: Thickness/Depth can be displayed in digital readout when using a normal probe and Beam path, SurfaceDistance and Depth are directly displayed when angle probe is inuse.
Both the DAC and the AVG method of amplitude evaluation areavailable.
Blue tooth connection to mobile device to generate and print detection reports on-site.
AWSD1.1.
Curved surface correctionfeature
Crack height measurefunction
Magnify gate：Extend of the gate range over the full screenwidth
Video Recording andplay
Auto-gain function
Envelope: Simultaneous display of live A-scan at 70 Hz update rate and envelope of A-scandisplay
Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret testresults.
A Scan freeze:Display freeze holds waveform and sound pathdata
B Scan displayfeature
Capture mark.
Echo color within the Gate.
Real Time Clock
The instrument clock keeps running tracking the time.
Communication
High speed USB3.0 port for U-Disk，the unit can get unlimitedmemory.
Blue tooth connection to mobile device to generate and print detection reports on-site. Printer option accessory
Battery
Internal rechargeable Li-ion battery pack rated 7.2V at 8800 mAh
15 hours nominal operating time depending on display brightness
4 hours typical recharge time
Knob
Operating adjustments are easily and quickly made using the rotary knob.
SPECIFICATIONS
Range: 0 to 9800 mm, at steelvelocity
Min. full screen display: 2.5 mm
Material Velocity: 100 to20000m/s
Display delay: -20 to 3400µs
Probe delay/Zero offset: 0 to99.99µs
Sensitivity: 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB and locked.
Test Modes: Pulse echo, dual element andthru-transmission
Pulse repetition frequency ranges from 10 Hz to 10000Hz
Pulse energy: 70V、125V、150V、250、300V、350、400、450、500V.selectable
Bandwidth (amplifier bandpass): 0.4 to 25MHz
Gate Monitors: Two independent gates controllable over entire sweeprange
Rectification: Positive half wave, negative half wave, full wave,RF
System Linearity: Horizontal<=0.2%FSW, Vertical<2%Amplifier, Accuracy +/-1dB.
Reject (suppression): 0 to 80% full screenheight
Units: Inch ormillimeter
Transducer Connections: BNC orLEMO1
Power Requirements: AC Mains 100-240 VAC, 50-60Hz
Operating Temperature: -10℃to50℃
Storage Temperature: -30℃to 50℃Base InstrumentPackage
Base InstrumentPackage
Portable Ultrasonic Flaw Detector with multi-color LCD Display
Straight beam transducer (2 MHz, Φ20)
Angle beam transducer (4 MHz, 8 mm×9mm, 60°)
Interconnect cable for transducer ( Lemo1-Lemo 00)
Rechargeable Li-Ion battery package. 8.8 Amp hour
110/240VAC Power supply/charger unit
U-Disk
Operating manual in English
Data-pro Software
Hard carrying case
