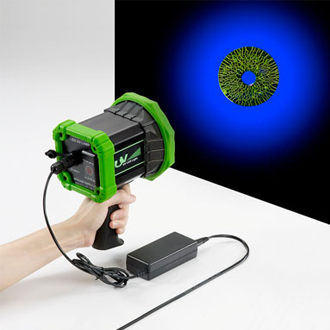

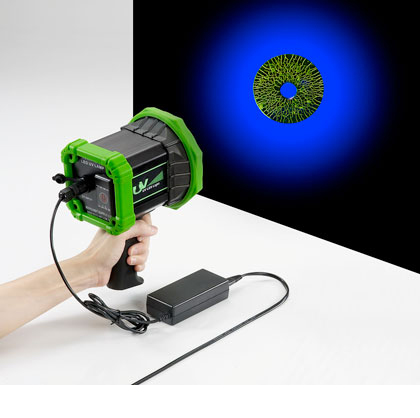

PORTABLE TOUCH-TYPE HIGH INTENSITY LED UV LAMP
HIGH QUALITY RELIABLE MODULE DESIGN FOR NDT APPLICATION
MEET ASME CODE REQUIREMENT
CE QUALIFIED APPROVED
.jpg)
.jpg)
SPECIFICATION
UV LED CHIP:NICHIA WITH LENS
NO. OF UV LED CHIP: 4
UV WAVE LENGTH : 365 nm

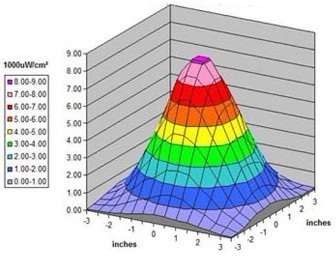

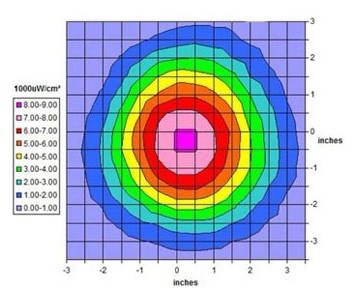

UV INTENSITY ( DISTANCE 18”):6500uw/cm²
WHITE LIGHT:LESS 2 ft/cd
AVERAGE LED LIFE:30000 HOURS
MERCURY:FREE
WARM UP:INSTANT ON/OFF
DUTY CYCLE:100%
UV BEAM DIA.:112mm
QUARTZ GLASS:STANDARD
UV GLASS:OPTIONAL
POWER SUPPLY:AC 110/220V
