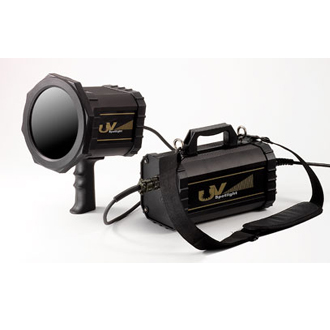

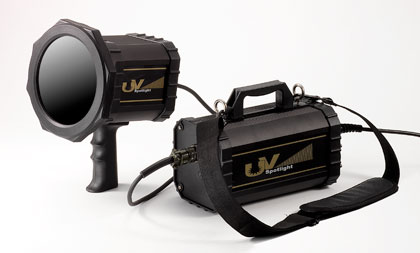

MODEL MPXM-BL
HID UV LIGHT DC TYPE
THE BATTERY TYPE SUPER-HIGH INTENSITY UV-A SPOT BLACK LIGHT
STATE-OF-THE-ART MICRO DISCHARGE LIGHT (MDL) TECHNOLOGY
START IMMEDIATELY LOW ENERGY COMSUMPTION 8228;LOW HEAT GENERATION
FEATURES:
HIGH INTENSITY THE UV-A OUTPUT THAN REGULAR MECURY LAMP
WORKS EVEN DIRECT UNDER SUNLIGHT
INSTANAT ON/OFF
LIGHT WEIGHT, SOLID STATE CONTROL BALLAST
COMPLETE ALUMINUM AND HARD IMPACT MATERIAL
16.8V LITHIUM TYPE BATTERY FOR WORKING MORE THAN 2.5 HOURS
APPLICATION:
NDT INSPECTION
UV CURING
FLUROSCENT LEAKAGE INSPECTION
MEDICAL RESEARCH, CLEAN ROOM CHECKING
TECHNICAL DESCRIPTION
Power Requirement: 16.8V DC battery
Output Power: 35W
Bulb service time: approx. 1000 hours
Wavelength: UV-A, peak at 365 nm
Irradiance: Spot reflection cup gt;20000 uW/cm2 ( 38.1cm)
MPXM-BL -technology ( 35W Gas Discharge bulb)
Low surface heat generation
Start-up time: 5-15 sec. depending temp. of bulb
Material in housing: anodized aluminum
Top-Carry handle or pistol grip type handle
Lamp Head and Electronic/Battery Ballast Separately
Lamp Head weight: 1.5 kg
Control Body weight: 3.0 kg
Lamp length: 165 mm
Control body: 230 mm
Control Cable length: 1.8 m
Power Cable length: 2 m
Battery Type: 16.8V Lithium type battery pack
Charger: 110 in and 16.8V output
Charger Time: 8 hours
Low Battery Indicating Lamp
