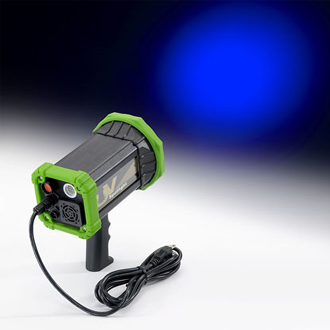

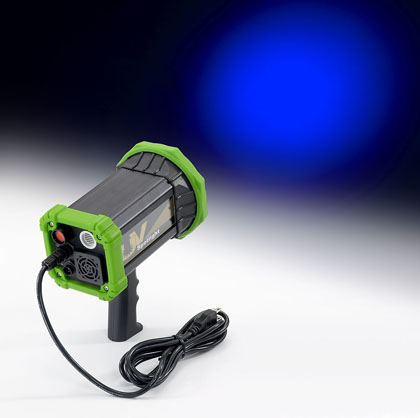

UNIVERSAL SUPER NOVA 4S
HIGH INTENSITY UV LED UV LAMP

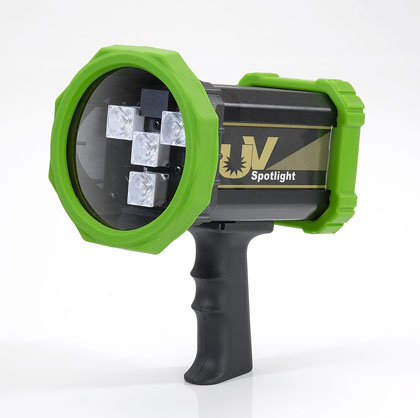

4x SPOT 365 nm UV LED WITH REFLECTION MIRROW
UNIVERSAL MODULE DESIGN FOR AC AND DC OPERATION
SIMPLE OPERATION AND EASY ASSEMBLE
MODEL : SN4A
![]() |
![]() |
FEATURES:
l NICHIA True 365 nm wavelength UV light
l Less 2 ft Candles of white Light
l Instant On/Off, no warm up or cooling down time
l No filter or bulbs to replace
l Mercury free
l Splash proof
l Quartz glass protect UV LED
SPECIFICATIONS:

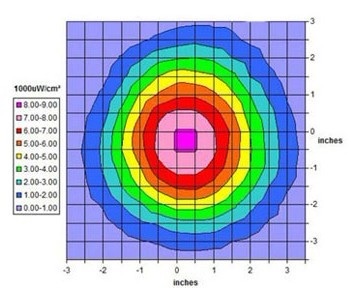

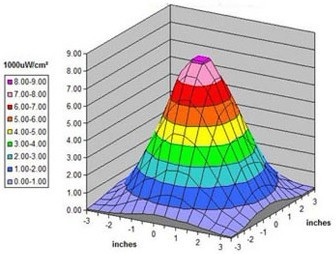

l UV Intensity: 9000 uW/cm² at distance 15” from LED light
l Fan cooled: 100% duty cycle
l Light Weight – 1.1Kg for AC, 850g for DC power Supply
l 4 x LED UV with lens, average LED life is 30,000 hours
l Universal Voltage: 110/220 VAC, 50/60 Hz
l Dimension – AC LED UV Lamp 200 X 120 X 120 mm ( LxWxH )
l Working area: 7” diameter at distance 15 inches
l Max Working intensity of 1000uW/cm²?60 inches
l AC Power Code: 3 m length
STANDARD
l SUPER 4S AC UV LED with 3 m AC power code
l Maker inspection certificate
OPTIONAL ACCESSORIES:
l 12 V DC Power supply module with
connection cable and belt
l Hard impact ABS protection case with form inside
