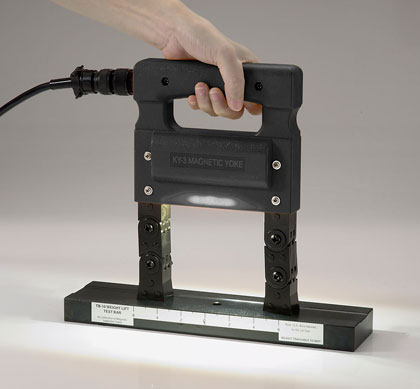

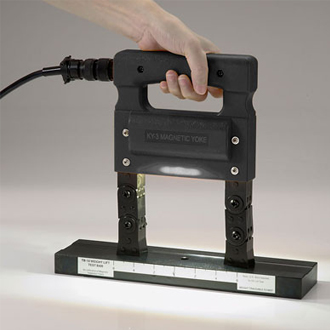

THE NEW PORTABLE YOKE MODEL KY-3-AC WITH LED LIGHT
KY-3-AC CONTOUR PROBE
The KY-3-AC Contour Probe is a portable, self-contained instrument designed to produce a magnetic field on or within ferro-magnetic materials.
The selective AC functions are built into a single reliable instrument. The AC mode produces an intense AC field for detection of surface defects and demagnetizing after inspection.
Controls and solid-state electronics are contained within the high impact molded housing. Articulating legs allow the AC field to be applied to the precise area of inspection on nearly any part of the surface shape… in the lab, factory or field site.
FEATURES
– Versatility and powerful performance in a weight (10 lbs.) instrument
– Apply continuous or residual magnetic fields and demagnetize to
– LED white light installed
– Use with dry powder, wet fluorescent or visible
– High impact molded housing
– One year repair/replacement guarantee
SPECIFICATION
Physical | 7.48″ (190 mm) × 9.76″ (248mm) × 2.2″ (57mm) |
Line Voltage Single Phase | 30 seconds on – 30 seconds off |
Line Current | 1.8A |
Duty Cycle | 30 seconds on – 30 seconds off |
Weight | 2.9Kgw |
Construction | Glass-filled nylon housing 5M cable |
Span | 8 in. (200 mm) across poles |
Field | AC |
LED Light | 3W |
![]() |
KY-3 –AC Kit

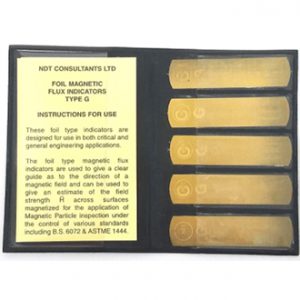

l KY-3 Main Unit l Dry Powder Bulb l Hard Carrying Case Optional Accessories l Magnetic Field Indicator l 20-0-20 Gauss Meter l 4.5 kgs Lift Bar l Black Light |
