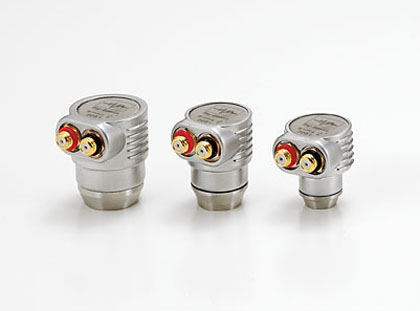

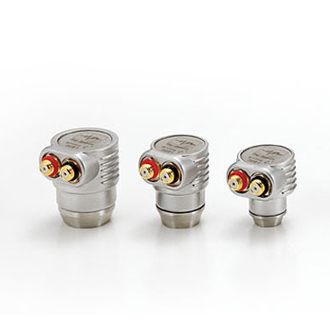

KUD PROBE DUAL CONTACT PROBE
Feature:
– Die Casting Probe Housing with InsertStainless Ring
– Easy To Handle
– Good Sensitivity And Near Field Resolution
– Bandwidth between 45-55% (at -6dB)
| P/N | Freq. MHz | Crystal Size in | Focus Depth in | Probe Connector |
| KUD10N.25 | 10 | 1/4 | 0.2 | MD |
| KUD5N.25 | 5 | 1/4 | 0.25 | MD |
| KUD225N.25 | 2.25 | 1/4 | 0.25 | MD |
| KUD5N.375 | 5 | 3/8 | 0.4 | MD |
| KUD225N.375 | 2.25 | 3/8 | 0.4 | MD |
| KUD5N.50 | 5 | 1/2 | 0.5 | MD |
| KUD225N.375 | 2.25 | 1/2 | 0.5 | MD |
Remark:
– Connector can changed into subvis or Lemo 00 equivalent
