EMAT Plus

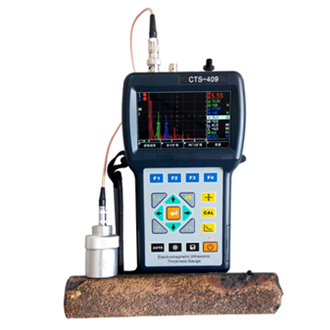

EMAT Plus is a portable electromagnetic ultrasonic thickness gauge, which can measure the thickness of any metal or magnetic material without coupling agent or with non-contact mode, pushed out latest by Guangdong Goworld Co., Ltd. Ultrasonic Instrument Branch.

Features:

·   Accurate measurement results without being affected by angles ( Up to 0.01mm of accuracy).

·   Convenient measurements without coupling agent, probe with wear-resisting layer, the hardness 80D+ (HS).

·   Measurement results without being affected by rough surface oxide coating / paint of work pieces; Measurements can be made through coating layers.

·   Suitable for high temperature thickness measurements (Up to 380 ?), Suitable for steel, copper, stainless steel and other conductive metal materials.

·   Oxide coating / sediment measurement function, measuring and displaying the steel substrate thickness and oxide sediment thickness, thickness measurement through the oxide coating on the steel surface without coupling agent.

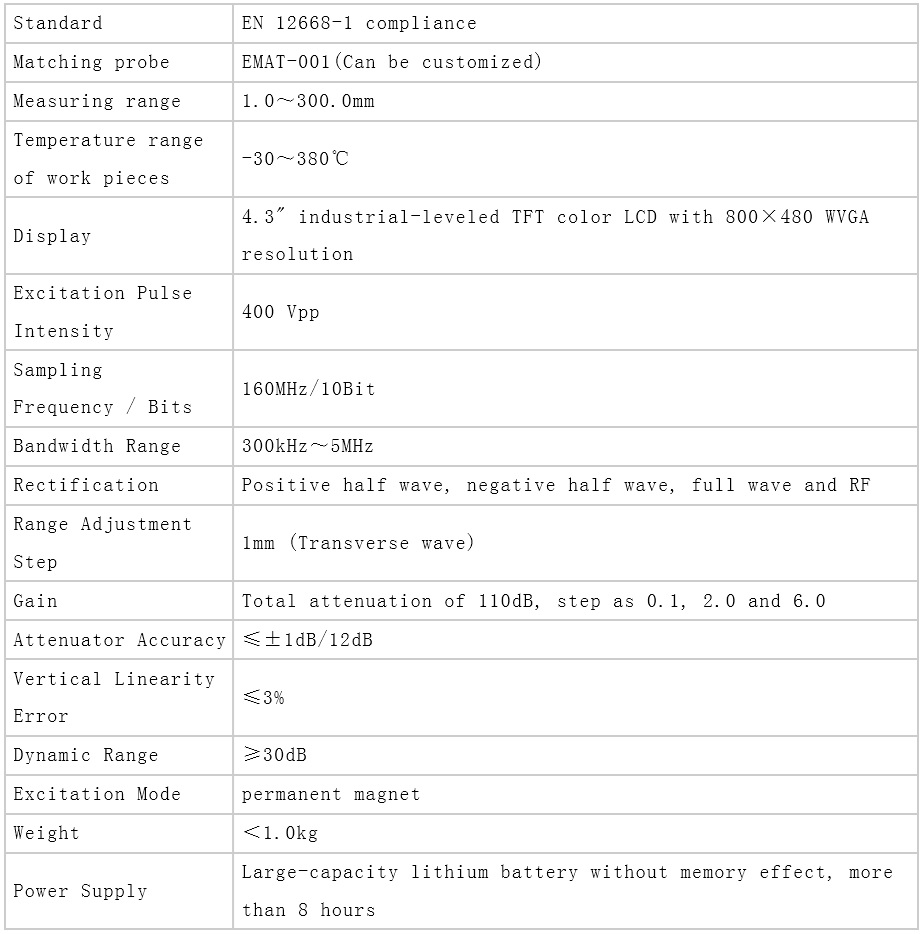

Specification:
