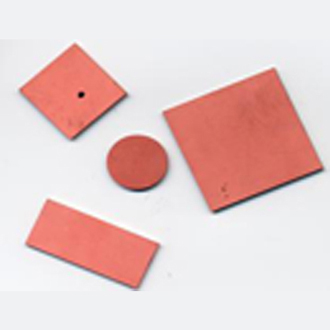

Piezocomposie
Ideal for NDT and Medical Applications
Lower Acoustic Impedance
Higher Coupling
Increased Sensitivity
Specifications:
Frequency:500 KHz to 7.5 MHz
Mechanical Q;100K 0.550
Acoustic Impedence:15.0 MRayL
Ceramic Curie Temp:; 350degree
Max. Operating Temp;100deg;C continuous
|
tem |
Frequency MHz |
Crystal Size mm |
|
1 |
7.5 |
6 |
|
2 |
7.5 |
10 |
|
3 |
5 |
6 |
|
4 |
5 |
8 |
|
5 |
5 |
10 |
|
6 |
5 |
12.5 |
|
7 |
5 |
20 |
|
8 |
5 |
25 |
|
9 |
5 |
8×9 |
|
10 |
5 |
10×10 |
|
11 |
5 |
20×20 |
|
12 |
5 |
30×30 |
|
13 |
2.25 |
10 |
|
14 |
2.25 |
12.5 |
|
15 |
2.25 |
20 |
|
16 |
2.25 |
25 |
|
17 |
2.25 |
8×9 |
|
18 |
2.25 |
20×20 |
|
19 |
2.25 |
30×30 |
|
20 |
5 |
D-type 4 |
|
21 |
5 |
D-type 6 |
|
22 |
5 |
D-type 8 |
|
23 |
5 |
D-Type 10 |
|
24 |
5 |
D-type 12.5 |
|
25 |
5 |
D-type 20 |
|
26 |
5 |
D-type 24 |
|
27 |
2.25 |
D-Type 10 |
|
28 |
2.25 |
D-type 12.5 |
|
29 |
2.25 |
D-type 20 |
|
30 |
2.25 |
D-type 24 |
