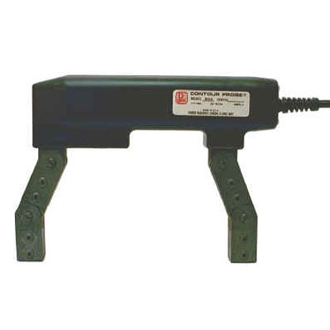

The B-300 Contour Probe is a lightweight (7½ pounds) Magnetic Inspection Yoke designed to perform magnetic particle inspections quickly and reliably.
As with the other Parker probes, the B-300 has fully adjustable legs which allow the strong AC field to be applied directly to the precise area to be inspected, regardless of part size or mass.
B-300 Contour Probe with Y-300 Yoke Light
 |
Y-300 High-Intensity Yoke Light is available for the B300 Contour Probe at addditional cost.
|
- Units are available in 115, 230, 42-48 VAC and 4-12 VDC
- All units are CE compliant
- When required, the B-300 may be operated from the optional DC-300 pulsed DC power supply
to provide intense DC magnetic fields - One year repair/replacement guarantee
SPECIFICATIONS
| B-300S | ||||
| Physical | 71/8H × 91/4W × 21/8D | |||
| Line Voltage Single Phase |
230 VAC 50/60 Hz |
|||
| Line Current | 3 A | |||
| Duty Cycle | 2 minutes on – 2 minutes off | |||
| Weight | 7½ lb | |||
| Construction | Polyurethane-filled glass/nylon housing 8 foot / 3 wire power cord |
|||
| Span | 0-12 in. across poles | |||
