B100

Product Name : B100 PARKER MT YOKE


B100.pdf

The Instrument that does so much, so well

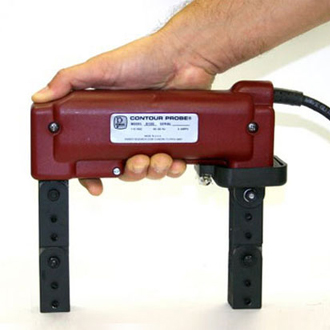

If you do any work with ferrous metals… in the shipyard, aerospace, steel mill, foundry, weldment or vehicle overhaul… you need the performance advantage of the B-100 Contour Probe.

Wide versatility
Mechanically, the B-100 Probe will conform to practically any surface configuration. Strong, constant AC fields or high intensity pulsed DC fields, using the DC-300 power supply.

One-Person Package
The B-100 Contour Probe is a complete magnetic package. One person takes it to work and easily performs a thorough and reliable inspection in a fraction of the time consumed by large bulky equipment.

Precise Area Inspection
Powerful magnetic fields are concentrated and applied to the precise area to be inspected. The construction of the new B-100 Contour Probe allows for the replacement of all internal components.

SPECIFICATIONS

B-100 B-100S
Line Voltage Single Phase 115 VAC
50/60 Hz
230 VAC
50/60 Hz
Line Current 4 A

3 A

Weight

6½ lb (2.95 kg)
