AWS PROBE

Product Name : AWS PROBE WITH SNAIL WEDGE

AWS ANGLE BEAN PROBE

2.25MHz 5/8 X 3/4 inch AWS angle bean probe

– Maximum inspection life for change the wedge

– Good sensitivity

– Meets all AWS code requirements

– BNC connector, top mount

Model Frequency MHZ Crystal Dia. Standard Connector
AWS-2.25 2.25 5/8″X3/4″ BNC

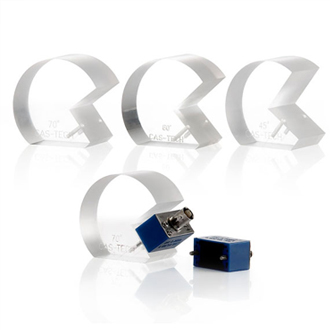

– 45 / 60 / 70 degree snail wedge available
