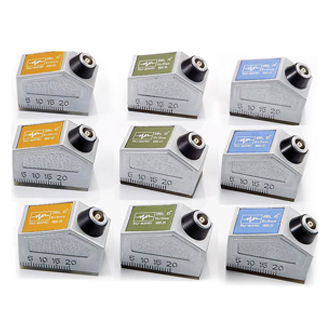

ANGLE BEAM PROBE

Product Name : EN TYPE ANGLE BEAM PROBE

分類:
-PROBE HOUSING: 31.5 mm L X 22.4 mm H X 17.2 mm W

P/N FREQUENCY CRYSTAL SIZE ANGLE DEGREE
EN-2M10-45 2MHz 10 mm 45
EN-2M10-60 2MHz 10 mm 60
EN-2M10-70 2MHz 10 mm 70
EN-2M10X10-45 2MHz 10X10 mm 45
EN-2M10X10-60 2MHz 10X10 mm 60
EN-2M10X10-70 2MHz 10X10 mm 70
EN-2M8X9-45 2MHz 8X9 mm 45
EN-2M8X9-60 2MHz 8X9 mm 60
EN-2M8X9-70 2MHz 8X9 mm 70
EN-2.5M10-45 2.5MHz 10 mm 45
EN-2.5M10-60 2.5MHz 10 mm 60
EN-2.5M10-70 2.5MHz 10 mm 70
EN-2.5M10X10-45 2.5MHz 10X10 mm 45
EN-2.5M10X10-60 2.5MHz 10X10 mm 60
EN-2.5M10X10-70 2.5MHz 10X10 mm 70
EN-4M10-45 4MHz 10 mm 45
EN-4M10-60 4MHz 10 mm 60
EN-4M10-70 4MHz 10 mm 70
EN-4M10X10-45 4MHz 10X10 mm 45
EN-4M10X10-60 4MHz 10X10 mm 60
EN-4M10X10-70 4MHz 10X10 mm 70
EN-4M8X9-45 4MHz 8X9 mm 45
EN-4M8X9-60 4MHz 8X9 mm 60
EN-4M8X9-70 4MHz 8X9 mm 70
EN-5M10-45 5MHz 10 mm 45
EN-5M10-60 5MHz 10 mm 60
EN-5M10-70 5MHz 10 mm 70
EN-5M10X10-45 5MHz 10X10 mm 45
EN-5M10X10-60 5MHz 10X10 mm 60
EN-5M10X10-70 5MHz 10X10 mm 70

– WEDGE MATERIAL: KATON ( TEMPERATURE PPROX. 85 DEGREE C )

-INDEX POINT: 12-15 mm

-CONNECTOR: MICRODOT, SUBVIS OR LEMO 00

-GOOD RESOLUTION AND SENSITIVITY

-BANDWIDTH: 45-60% AT – 6 dB
