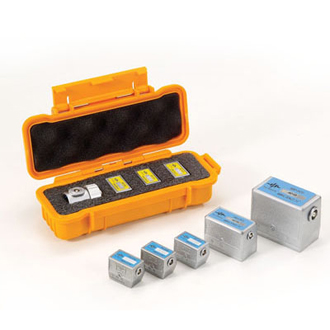

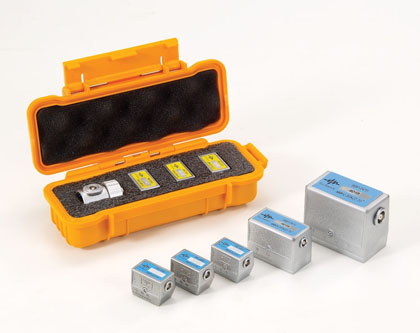

ANGLE BEAM PROBE

Product Name : SHEAR WAVE ANGLE BEAM PROBE

Euro Style Angle Beam Transducers

? Band width 45-55% at – 6dB
? Sensitivity better than KK 6-8dB more
? Lemo 00 equivalent connector are standard.
Model	Frequency Mhz	Size (mm)	Angle
ABC-0245	2	8 X 9	45
ABC-0260	2	8 X 9	60
ABC-0270	2	8 X 9	70
ABC-0445	4	8 X 9	45
ABC-0460	4	8 X 9	60
ABC-0470	4	8 X 9	70
ABE-0245	2	14 X 16	45
ABE-0260	2	14 X 16	60
ABE-0270	2	14 X 16	70
ABE-0445	4	14 X 16	45
ABE-0460	4	14 X 16	60
ABE-0470	4	14 X 16	70
Lemo 01 equivalent connector are standard.
BBP-0245	2	20 X 22	45
BBP-0260	2	20 X 22	60
BBP-0270	2	20 X 22	70
BBP-0445	4	20 X 22	45
BBP-0460	4	20 X 22	60
BBP-0470	4	20 X 22	70
